RAG — document intelligence¶

AKKO's retrieval service. Clients upload documents into collections; the service extracts the text, chunks it, computes 768-dim embeddings via the sovereign AI gateway, and stores everything in a vector store inside the platform Storage layer. Downstream callers (ADEN, cockpit, an agent, a notebook) then issue semantic queries against a collection and receive ranked chunks with full provenance.

Phase 0 — tier-1 backend only

This service is scoped to grow in three phases, all behind the same API contract. Phase 0 (shipped) uses an embedded vector store for collections of up to ~1 k documents. Phases 2-3 swap in hybrid search and a big-data backend without breaking any caller. Full plan : rag-document-intelligence.

Architecture¶

flowchart LR
    subgraph Clients
        CK[Cockpit /#rag]
        ADEN[ADEN]
        NB[Notebook]
        AG[Agent]
    end
    subgraph RAG["akko-rag (FastAPI)"]
        API[/collections<br/>/documents<br/>/query/]
        EX[Extractor<br/>pypdf / txt / md]
        CHK[Chunker<br/>word-window]
        EMB[Embedder<br/>3× retry]
    end
    subgraph Backends
        PG[(akko-postgresql-data<br/>akko_rag schema<br/>pgvector HNSW + GIN)]
        LL[akko-litellm<br/>embed + chat]
    end
    Clients --> API
    API --> EX --> CHK --> EMB --> LL
    EMB --> PG
    API <--> PG

Supported formats¶

The ingestion pipeline extracts text with pypdf for PDFs and a UTF-8 reader for text-based formats. Formats are validated against the real extractor (docker/akko-rag/app/extractor.py), not marketing claims:

Format	Extension / MIME	Status	Notes
PDF	`.pdf` / `application/pdf`	✅ supported	text layer via `pypdf` (no OCR yet)
Markdown	`.md`, `.markdown`	✅ supported
Plain text	`.txt`, `.log`, `.csv`	✅ supported	UTF-8
DOCX	`.docx`	✅ supported	paragraphs + tables via `python-docx`
PPTX	`.pptx`	✅ supported	text + tables per slide via `python-pptx`
XLSX	`.xlsx`	✅ supported	cell values per sheet via `openpyxl`
HTML	`.html`, `.htm`	✅ supported	tags stripped, scripts/styles dropped (stdlib parser)
Other text	any `text/*`	✅ best-effort	UTF-8
Scanned PDF	`.pdf` (no text layer)	✅ supported	on-demand OCR fallback via `tesseract` (digital PDFs never pay it)
Images	`.png`, `.jpg`, `.tiff`	✅ supported	OCR via `tesseract` (fra+eng); gated by `AKKO_RAG_OCR_ENABLED`
Unknown binary	`.doc`, `.ppt`, `.xls`, `.zip`	❌ rejected	returns 400 instead of indexing mojibake
Audio / voice	`.wav`, `.mp3`	❌ not supported	no transcription in `akko-rag`; a scanned-document / voice tier is a future item

Voice is not ingestible today

akko-rag has no audio transcription path. A voice note must be transcribed to text first (e.g. by a separate tool) before it can be uploaded. This is documented honestly rather than implied.

Step-by-step (from the cockpit UI)¶

Sample files live in docs/docs/assets/rag-samples/ — a PDF, a Markdown policy note and a free-text meeting minute, all fictional and non-sensitive. Use them to reproduce this walkthrough.

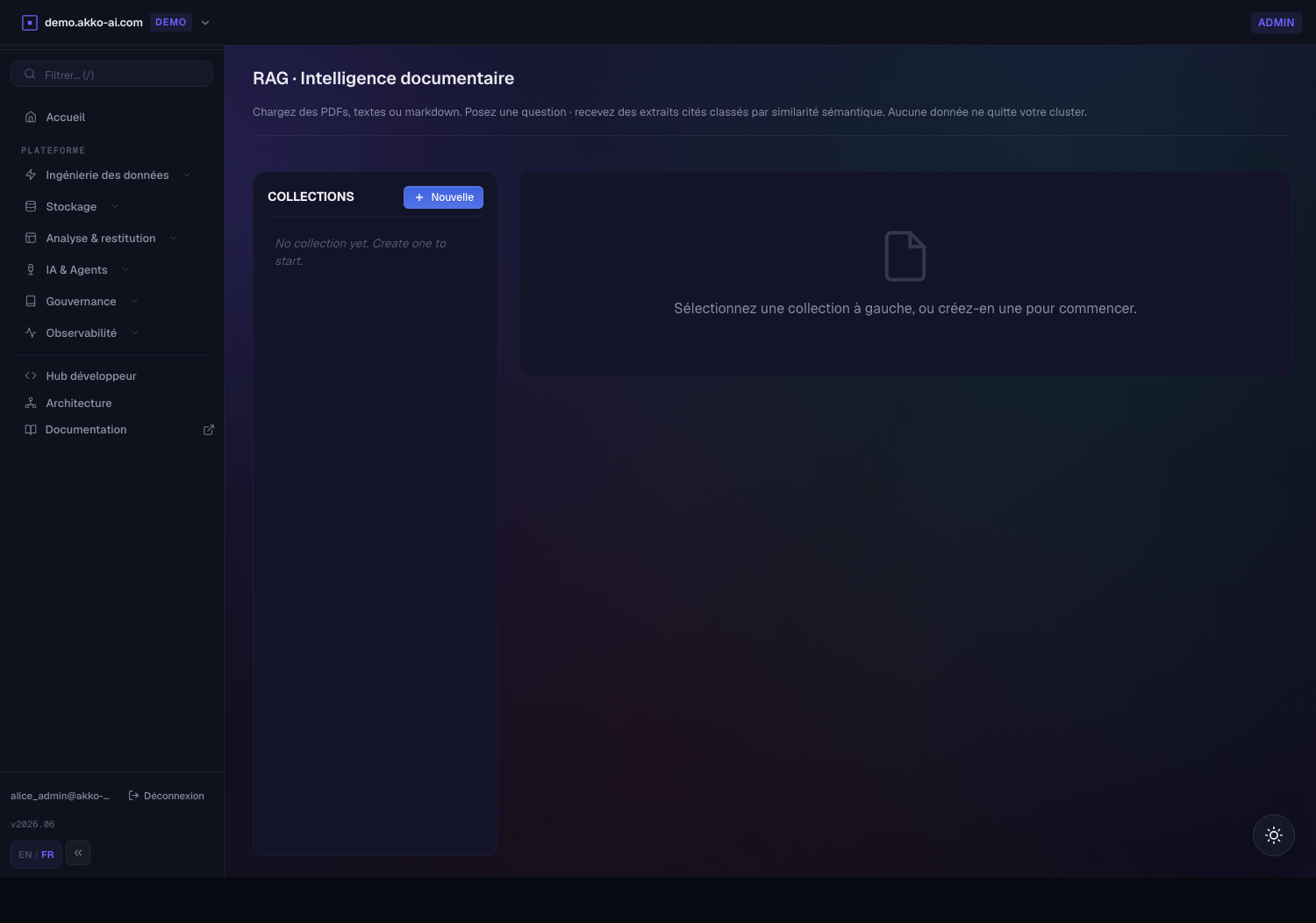

Open the RAG page. Sign in with SSO and open the cockpit, then go to AI & Agents → RAG (or the #rag route). You land on RAG · document intelligence.

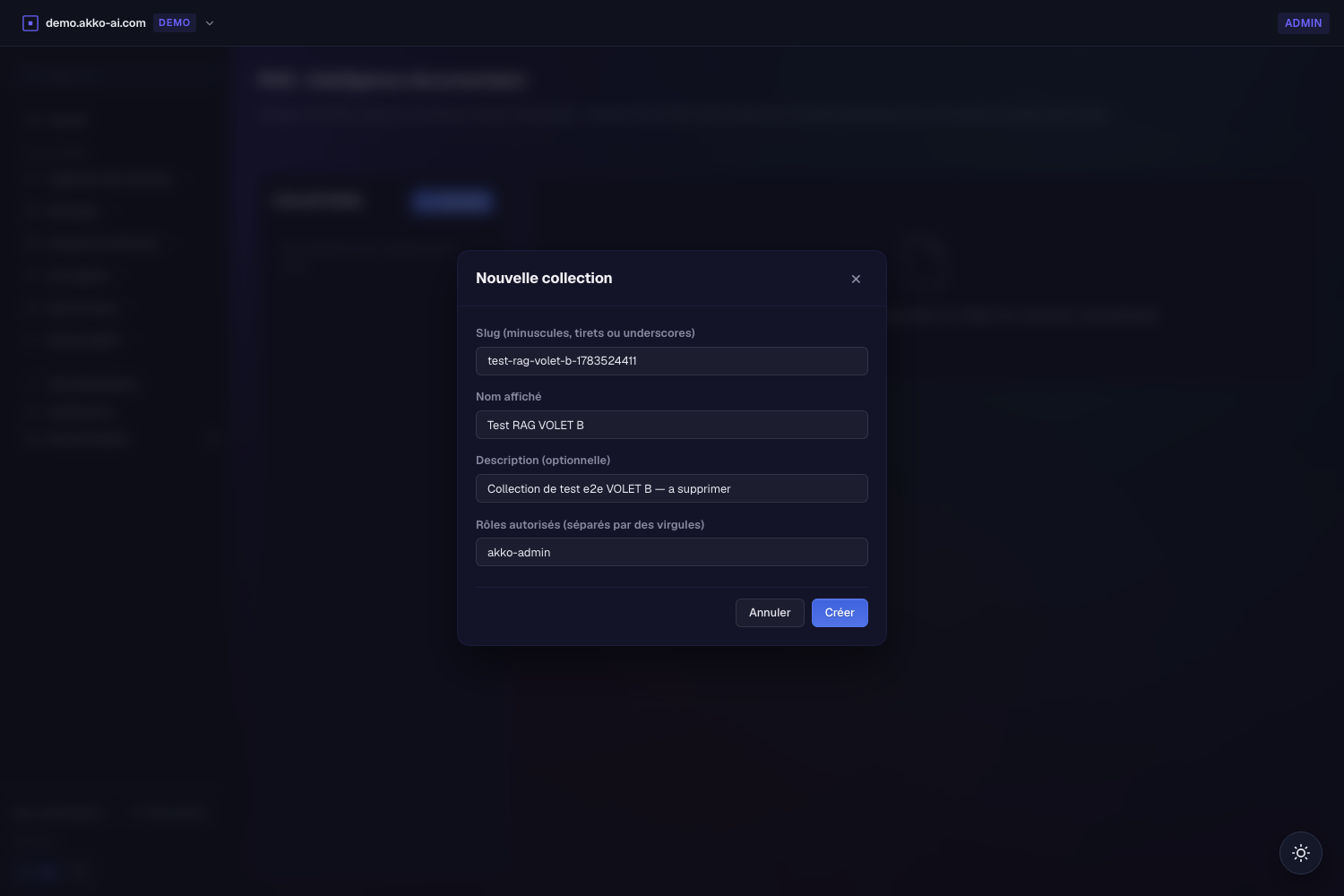

Create a collection. Click + New, give it a name (the slug is derived automatically), an optional description, and the roles allowed to read it. Leave roles empty for an open collection, or restrict it — e.g. akko-admin — to enforce access control.

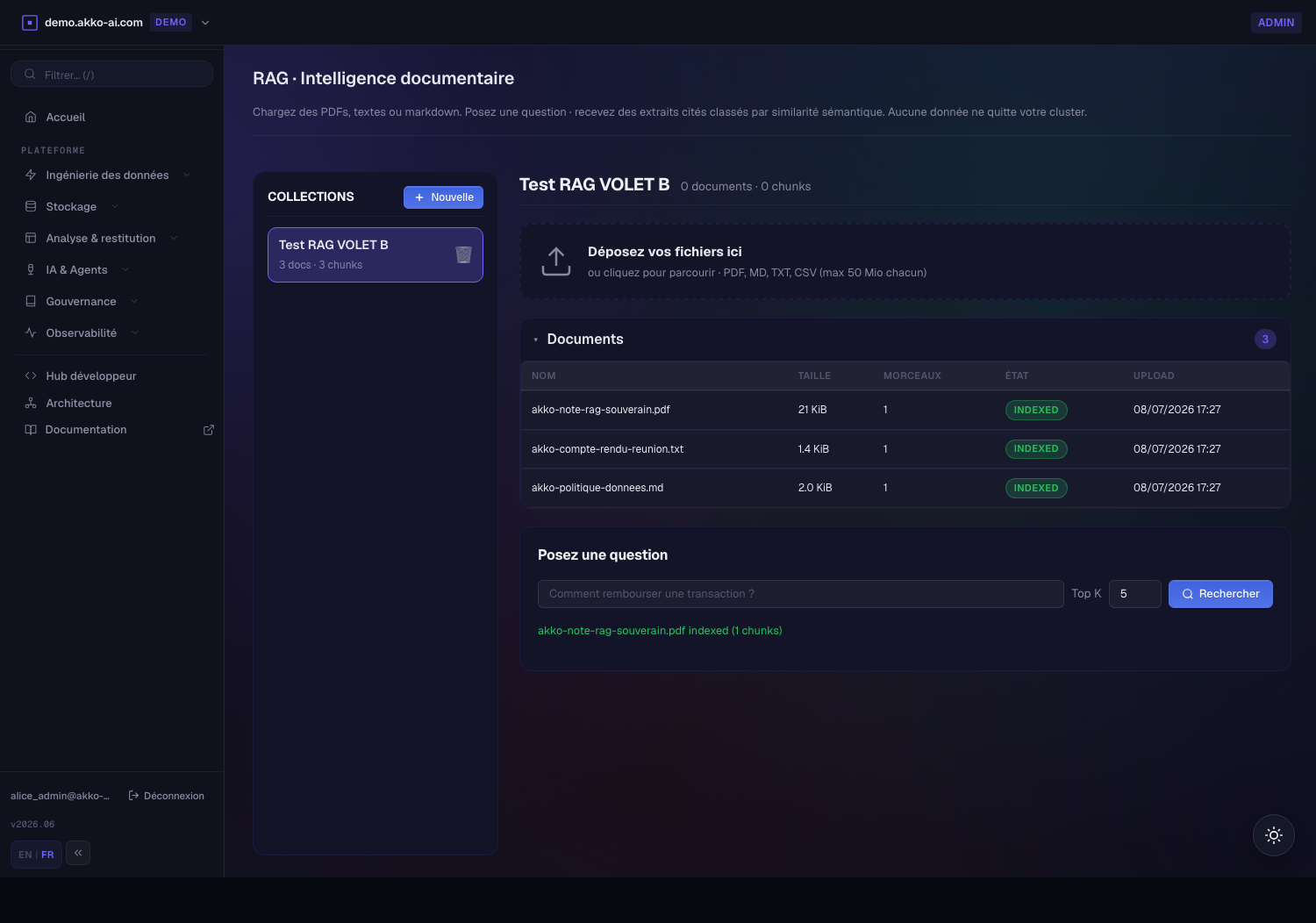

Upload documents. Drop files onto the dropzone or click to browse (PDF, MD, TXT, CSV — up to 50 MiB each). Each file is extracted, chunked, embedded (768-dim) and stored. The document row flips to INDEXED with its chunk count.

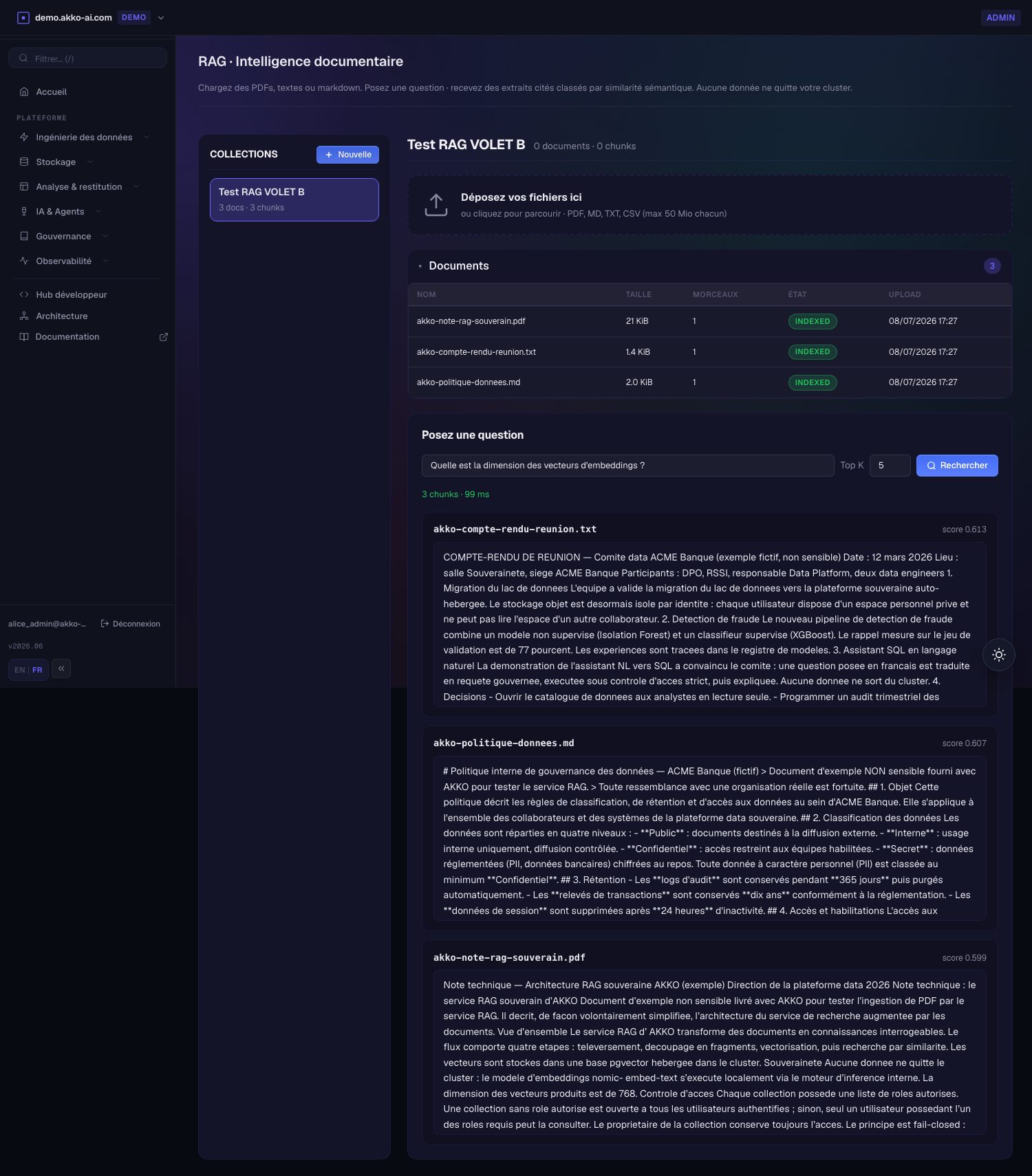

Ask a question. Type a natural-language question and press Search. The service embeds the question, runs a cosine-similarity search and returns the top-k chunks — each with its source filename, page/section and a similarity score. This is the citation: you can trace every answer back to the exact document and passage.
Manage access. A user whose platform role is not in the collection's allowed_roles cannot see it, cannot list it and is refused (403) on a direct query — verified live with eve_viewer against an akko-admin-only collection. The gate is fail-closed.
Delete the collection when done — the cascade removes its documents and chunks. (In the walkthrough above the whole cycle is created and torn down without touching any demo collection.)

API (Phase 0)¶

Method	Path	Purpose
GET	`/health`	liveness
GET	`/ready`	DB reachability
GET	`/metrics`	Metrics layer (Prometheus) counters + histogram
POST	`/collections`	create logical grouping with `allowed_roles`
GET	`/collections`	list with document + chunk counts
POST	`/collections/{slug}/documents`	upload → extract → chunk → embed → store
GET	`/collections/{slug}/documents`	list documents
POST	`/collections/{slug}/query`	top-k retrieval by cosine similarity
GET	`/audit/queries?limit=N`	recent retrievals (audit trail)

Identity: trust the upstream ingress header X-Trino-User (fallback X-User-Id), same convention as ADEN and the Trino AI plugin. Phase 1 replaces this with Identity (Keycloak) JWT verification.

Example¶

# 1. create a collection
curl -s -X POST https://rag.akko-ai.com/collections \
     -H "X-Trino-User: alice" -H "Content-Type: application/json" \
     -d '{"slug":"kb","name":"Knowledge base",
          "allowed_roles":["akko-admin","akko-engineer"]}'

# 2. upload a PDF
curl -s -X POST https://rag.akko-ai.com/collections/kb/documents \
     -H "X-Trino-User: alice" \
     -F "file=@/path/to/policy.pdf"

# 3. query
curl -s -X POST https://rag.akko-ai.com/collections/kb/query \
     -H "X-Trino-User: alice" -H "Content-Type: application/json" \
     -d '{"question":"how do I refund a charge?","top_k":5}'

Response:

{
  "question": "how do I refund a charge?",
  "collection": "kb",
  "chunks": [
    {
      "chunk_id": "…",
      "document_id": "…",
      "filename": "policy.pdf",
      "page": 4,
      "text": "Refunds are issued within 14 days …",
      "score": 0.87
    }
  ],
  "latency_ms": 38
}

Configuration¶

Every setting resolves from either AKKO_<NAME> or the bare <NAME> env, so values-dev, values-netcup and local docker runs share the same defaults. Full list:

Env var	Default	Purpose
`AKKO_PG_HOST`	`akko-postgresql-data`	PostgreSQL host
`AKKO_PG_PORT`	`5432`
`AKKO_PG_DATABASE`	`akko`
`AKKO_PG_USER`	`akko`
`AKKO_PG_PASSWORD`	(Secret)	from `akko-postgresql-data` Secret
`AKKO_EMBED_URL`	`http://akko-akko-litellm:4000`	AI gateway (LiteLLM) OpenAI-compat
`AKKO_EMBED_MODEL`	`akko-embed`	AI gateway routing alias
`AKKO_EMBED_DIM`	`768`	matches `nomic-embed-text`
`AKKO_CHAT_URL`	`http://akko-akko-litellm:4000`	Phase 1 answer generation
`AKKO_CHAT_MODEL`	`akko-chat`	Phase 1
`AKKO_CHUNK_SIZE_TOKENS`	`400`	word window
`AKKO_CHUNK_OVERLAP_TOKENS`	`60`	overlap in words
`AKKO_MAX_UPLOAD_BYTES`	`52428800`	50 MiB hard cap
`AKKO_DEFAULT_TOP_K`	`5`	default retrieval size
`AKKO_MAX_TOP_K`	`50`	hard ceiling

Enabling the service¶

Disabled by default in the umbrella chart. Flip it on:

# values-dev.yaml (or values-netcup.yaml)
akko-rag:
  enabled: true

The schema is provisioned by postgres/init/11-akko-rag.sql at first boot of akko-postgresql-data. On an already-initialised cluster, re-apply the file manually against akko-postgresql-data:

kubectl -n akko exec deploy/akko-akko-postgresql-data -- \
    psql -U akko -d akko -f /docker-entrypoint-initdb.d/11-akko-rag.sql

Phases ahead¶

Phase	Delivers	Backend
0 (shipped)	Ingest + chunk + embed + pgvector top-k	pgvector HNSW
1	Chat answer with citations, JWT auth, cockpit UI, Policy engine (OPA) filtering	pgvector
2	Hybrid BM25 + dense search, Orchestration engine (Airflow) watchfolder, HPA, ServiceMonitor	OpenSearch knn
3	Compute engine (Spark) embed UDF, Iceberg VECTOR column, Query engine (Trino) hybrid SQL	Compute engine + Iceberg
